Non-standard Custom-made Large Descaling Machine

/Non-standard Custom Shot Blasting Double Pump Descaling Machine

Non-standard Custom Shot Blasting Double Pump Descaling Machine

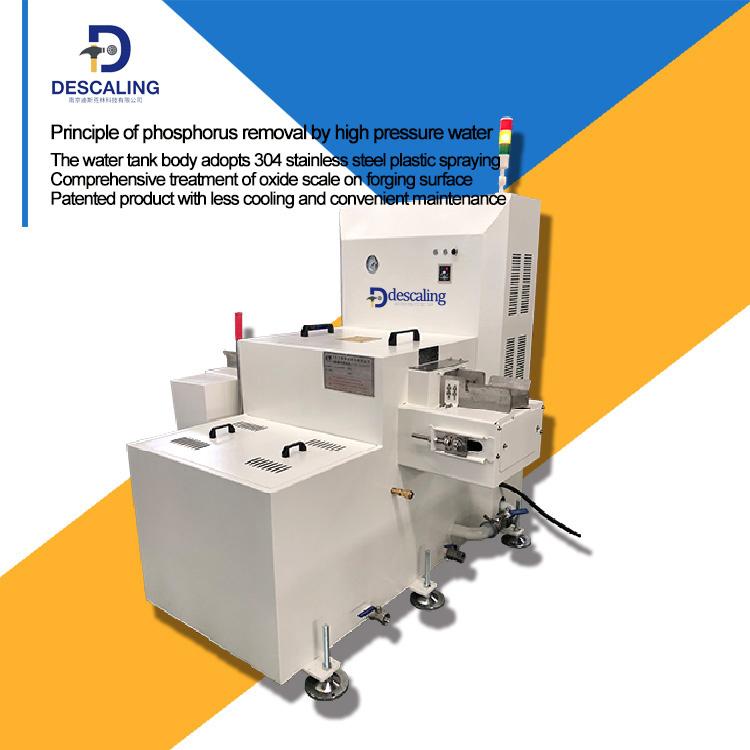

Non-standard Custom-made Shot Blasting Double Pump Descaling Machine is applicable to the oxide scale cleaning of all kinds of forgings from forge prodution line, and it can clean the scale of 20-150mm diameter round bars after heating in induction furnace, and also could clean the size under 150*150mm heated blanks. This equipment can be customized according to customer's forgings.

  • Item NO.:

  • Payment:

  • Product Origin:

  • Color:

  • Goods stock:

  • Product weight:

    900 kg
  • Shipping Port:

  • Lead Time:

    2 MONTHS
Share To :
Product Details

                          Non-standard Custom Shot Blasting Double Pump Descaling Machine

The hot die forging scale cleaning machine is suitable for cleaning the scale generated on the surface of round bar heated by induction furnace. The Descaling Machine can be used together with hydraulic press and forging hammer. It is usually set in the link after heating in induction furnace. Customers need to provide the size of forgings, forging process and equipment site layout. We can customize the scale cleaning machine according to customers' conditions. At present, it has been widely used in many forging fields,it could clean 90% of the oxide scale of automobile parts.It has been used in the fields of construction machinery, agricultural machinery parts, hardware tools and so on.

CNC Punch Forgings Descaling and Cleaning Machine

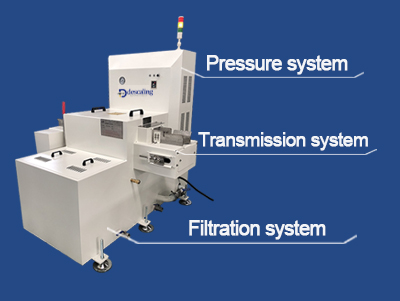

The descaling machine from Descaling technology, the main body of the equipment is composed of a pressure system, a transmission system and a filtration system. The three systems jointly use the principle of high-pressure water descaling to complete the cleaning process of the forging scale.

Double Pump for Hydraulic Press Forging Cleaning

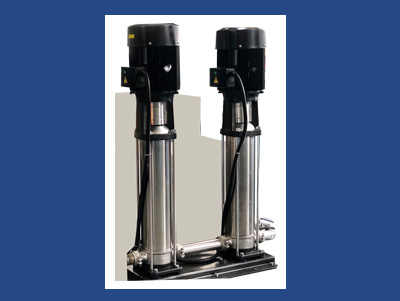

The high-pressure water descaling system is adopted, and the high-pressure water generated by the high-pressure water pump enters the descaling nozzle and is sprayed on the surface of the forging (or intermediate billet). The oxide scale has undergone the process of being cut, rapidly cooled and contracted, peeled from the base material, and washed away from the surface of the forging, thereby removing the oxide scale.

Forged Products Surface Treatment

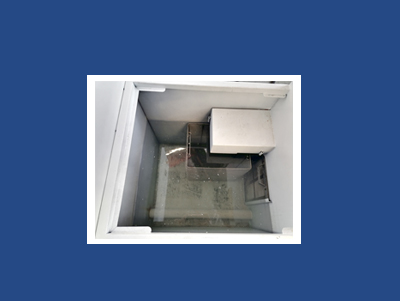

The descaling machine is equipped with two water tanks. The water tank has a built-in filter screen and a net basket to form the filter system of the equipment to prevent oxide scale from entering the water pump and affect the service life of the equipment. At the same time, it is equipped with a magnetic shovel to clean the oxide scale in the water tank.

Machining Machine For Forgings Oxide Skin Cleaning

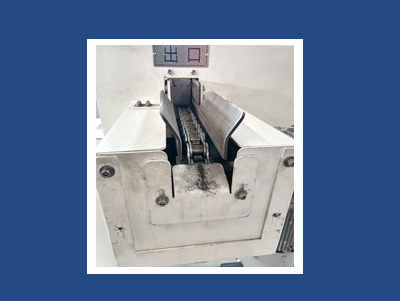

The frequency conversion motor and the chain constitute the transmission system, which is responsible for transporting the forgings for the cleaning process. The transmission speed of the chain can be adjusted to ensure that the temperature of the forgings after cleaning is small, which is conducive to subsequent forging.

1, The main body of the water tank is made of 304 stainless steel and painted with blue sky

2, The exit and entrance adopt integral welding with high parallelism

3, Front and back built-in baffle, less splash, easy maintenance

4, Compared with the conventional 120 type machine, the pressure is higher, up to 3.0MPa

5, Compared with the conventional 120 type machine, the cleaning range of bar material is larger

6,The nozzle mounting seat is welded with stainless steel, which is easy to maintain

7,Comprehensive treatment of oxide skin, less lower the temperature

8,After removing the oxide scale, the metallographic structure of the product has no chang

Name Model Dimension(mm) Equipment power Pump brand Flow
Custom 150 Double Pump Descaling Machine
Nanfang pump
Suitable for bar diameter(mm)
Width and height after blank making(mm)
Number of nozzles
Transmission motor
Chain specification
304 stainless steel
Speed control motor

Before and After Using DEescaling Machine

Forge Factory Production LIne Descaler

Descaling Machine in Chinese Forge Industry

1. What kind of forging pieces is descaling machine suitable for?
The descaling machine is applicable to the forging production line. It can clean the oxide scale generated after heating by induction furnace and effectively improve the surface quality of products.
2. How to choose the model of descaling machine? Can it be customized?
You can select the corresponding standard model through the diameter of the round bar and the size of the billet after making. For details, please check the parameter navigation bar of the webpage. If there is a need for customization, we can also provide customized services according to the customer's raw material size and process.
3. How to daily maintain descaling equipment?
We will recommend that customers regularly clean the oxide scale in the water tank. You only need to use a magnetic shovel to remove most of the oxide scale. But also regularly replace the water in the water tank to ensure a normal filtration cycle.
4. Does the principle of high-pressure water descaling change the metallographic structure?
This method has been tested by a third-party organization. The test report shows that there is no change in the metallographic structure before and after cleaning, which has no effect on the later process.
5. How effective is the descaling machine? Is there a reference video for descaling equipment?
Descaling Technology has served more than a thousand forging factories in China, and received a large number of market feedback results. Regarding the on-site use of the equipment, please click into official YouTube account as below for more information.
