Non-standard Custom-made Double Pump Descaling Machine

/Non-standard Custom Large Forging Steel Shaft Descaling Machine

Non-standard Custom Large Forging Steel Shaft Descaling Machine

Non-standard Custom-made Large Double Pump Descaling Machine is applicable to the oxide scale cleaning of all kinds of forgings, and it can clean the scale of 70-130mm diameter round bars after heating in induction furnace, and also could clean the size under 130*130mm heated blanks. It is especially suitable for cleaning large forgings. The equipment adopts the design of double pumps and adds a chip conveyor compared with the standard model to collect forge scale produced by electric furnace.The cleaning and surface treatment technology of forging oxide scale is more perfect, and the surface treatment process of hot die forging is effectively improved.

  • Item NO.:

  • Payment:

    50% Downpayment,50% Before shipping
  • Product Origin:

  • Color:

  • Goods stock:

  • Product weight:

    800 kg
  • Shipping Port:

    Shanghai Port
  • Lead Time:

    1 Months
Share To :
Product Details

                                  Non-standard Custom Large Forging Steel Shaft Descaling Machine

Non-standard Custom Large Forging Steel Shaft Descaling Machine is used to clean all kinds of large forgings, such as gears, connecting rods, crankshafts, cross shafts, etc. on auto parts. After being heated by induction furnace, the oxide scale on the surface will affect the surface quality of forgings. The oxide scale on the surface can be cleaned by our oxide scale cleaning descaler machine.

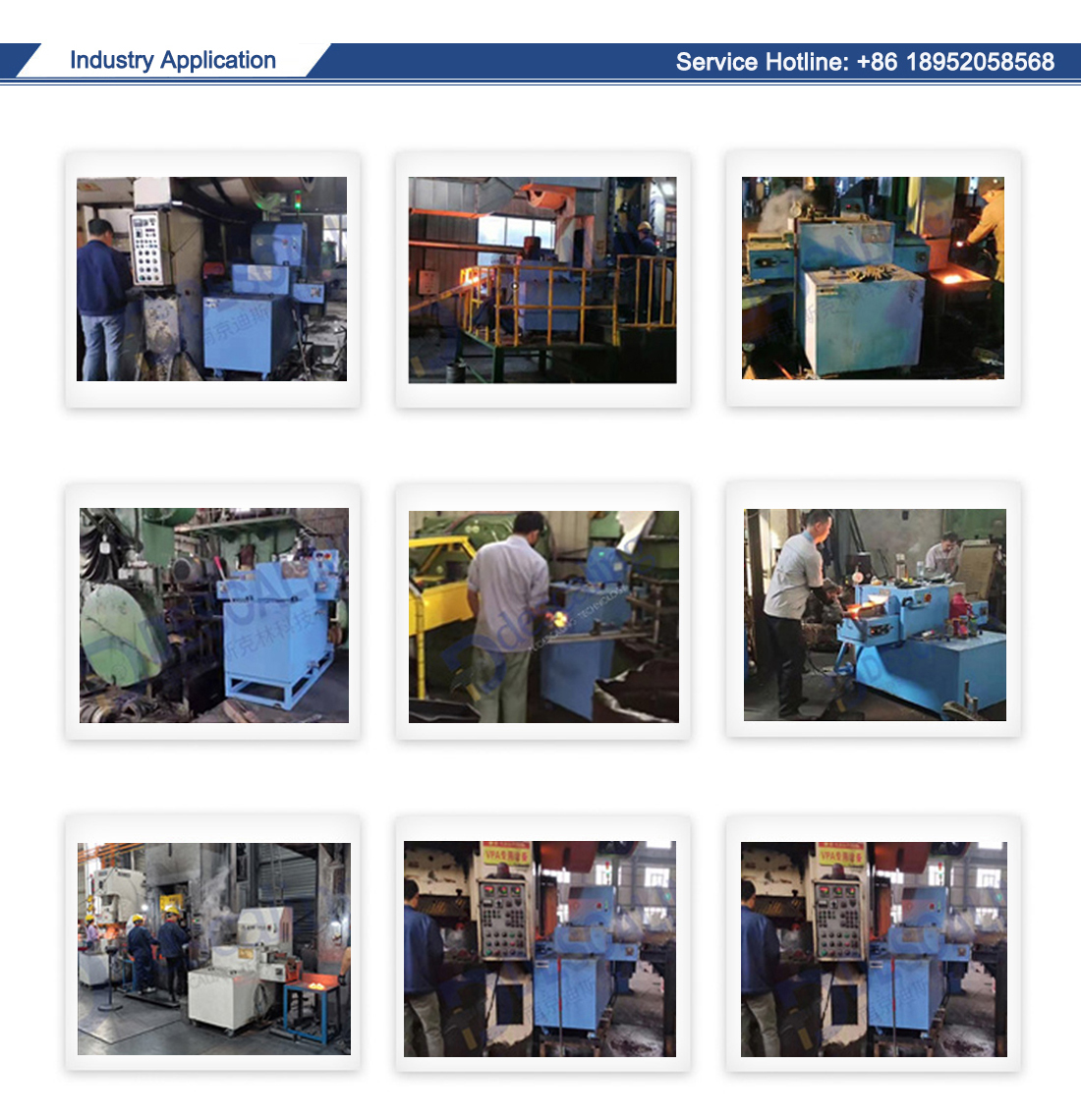

Many forging manufacturers will support the use of mechanical arm to realize the forge scale cleaning process through automatic forging line, so as to save manpower, effectively improve the surface quality of hot die forgings, increase the service life of dies and save raw materials.
The scale cleaning machine developed by our company has 8 years of experience in the Chinese market, and has been exported to India, Vietnam, Taiwan, Thailand and other overseas countries to serve the forging industry all over the world. It also infiltrates the scale cleaning process into the forging field, and expands the surface quality treatment of forgings from the original peeling machine, sand blasting machine, shot blasting machine to the surface cleaning of hot forgings.

Separate Design Descaling Machine
The descaling machine from Descaling technology, the main body of the equipment is composed of a pressure system, a transmission system and a filtration system. The three systems jointly use the principle of high-pressure water descaling to complete the cleaning process of the forging scale.

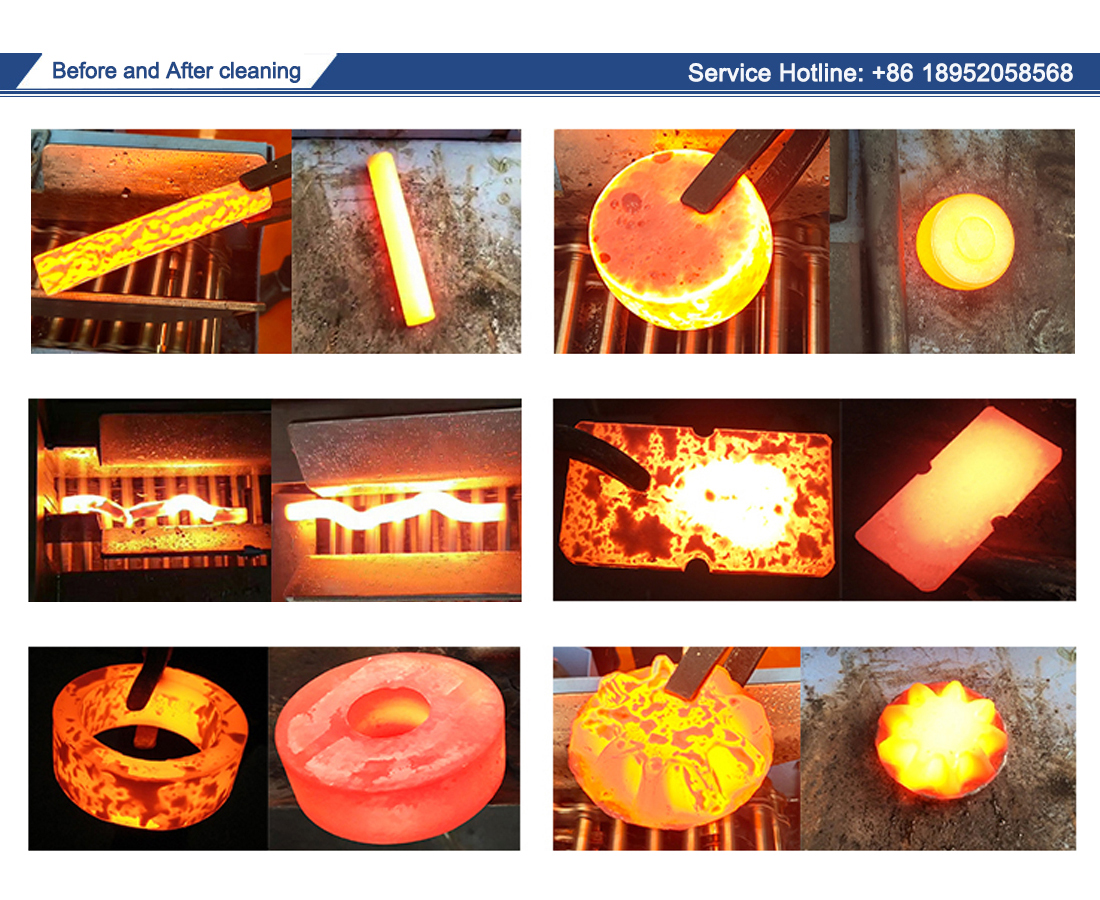

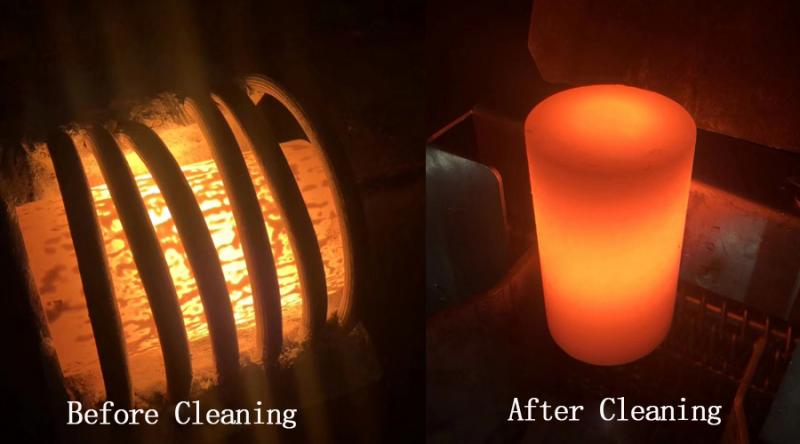

The high-pressure water descaling system is adopted, and the high-pressure water generated by the high-pressure water pump enters the descaling nozzle and is sprayed on the surface of the forging (or intermediate billet). The oxide scale has undergone the process of being cut, rapidly cooled and contracted, peeled from the base material, and washed away from the surface of the forging, thereby removing the oxide scale. High Pressure Pump for Descaling Machine
Speed Adjustable Chain Descaling Machine
The frequency conversion motor and the chain constitute the transmission system, which is responsible for transporting the forgings for the cleaning process. The transmission speed of the chain can be adjusted to ensure that the temperature of the forgings after cleaning is small, which is conducive to subsequent forging.
The descaling machine is equipped with two water tanks. The water tank has a built-in filter screen and a net basket to form the filter system of the equipment to prevent oxide scale from entering the water pump and affect the service life of the equipment. At the same time, it is equipped with a magnetic shovel to clean the oxide scale in the water tank. Oxide Skin Filter in Cleaning Machine

1, The main body of the water tank is made of 304 stainless steel and painted with blue sky

2, The exit and entrance adopt integral welding with high parallelism

3, Front and back built-in baffle, less splash, easy maintenance

4,The nozzle mounting seat is welded with stainless steel, which is easy to maintain

5,Comprehensive treatment of oxide skin, less lower the temperature

6,After removing the oxide scale, the metallographic structure of the product has no chang

Name Model Dimension(mm) Equipment power Pump brand Flow
Custom Double Pump Descaling Machine
Nanfang pump
Suitable for bar diameter(mm)
Width and height after blank making(mm)
Number of nozzles
Transmission motor
Chain specification
70-130 130*130
304 stainless steel
Speed control motor

1. What kind of forging pieces is descaling machine suitable for?
The descaling machine is applicable to the forging production line. It can clean the oxide scale generated after heating by induction furnace and effectively improve the surface quality of products.
2. How to choose the model of descaling machine? Can it be customized?
You can select the corresponding standard model through the diameter of the round bar and the size of the billet after making. For details, please check the parameter navigation bar of the webpage. If there is a need for customization, we can also provide customized services according to the customer's raw material size and process.
3. How to daily maintain descaling equipment?
We will recommend that customers regularly clean the oxide scale in the water tank. You only need to use a magnetic shovel to remove most of the oxide scale. But also regularly replace the water in the water tank to ensure a normal filtration cycle.
4. Does the principle of high-pressure water descaling change the metallographic structure?
This method has been tested by a third-party organization. The test report shows that there is no change in the metallographic structure before and after cleaning, which has no effect on the later process.
5. How effective is the descaling machine? Is there a reference video for descaling equipment?
Descaling Technology has served more than a thousand forging factories in China, and received a large number of market feedback results. Regarding the on-site use of the equipment, please click into official YouTube account as below for more information.
