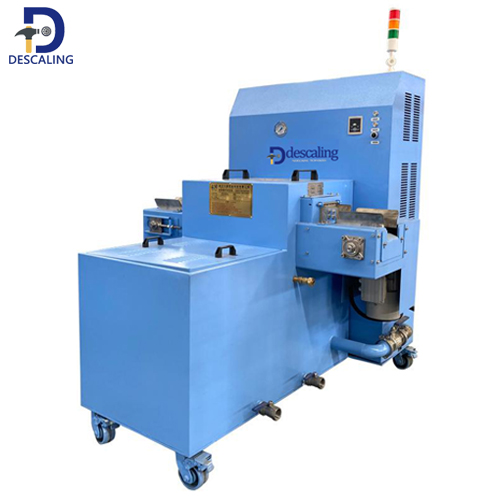

Forge Hardware Standard Descaling Machine,Hydraulic Descaling System

Parameters

We recommend you select the right machine models according to your round bars diameter or billets size.

型号	Model	JL-QX-A40	JL-QX-A90	JL-QX-A110	JL-QX-A130	JL-QX-A160
圆钢直径	Round steel diameter	≤40mm	≤90mm	≤110mm	≤130mm	≤160mm
传送方式	Transmission method	网格式	串杆式	串杆式	串杆式	滚轮式
喷头数量	Number of nozzles	≈12个	≈18个	≈20个	≈22个	≈24个
材质	Material	304不锈钢/SS304	304不锈钢/SS304	304不锈钢/SS304	304不锈钢/SS304	304不锈钢/SS304
通道	Channel	Width80mm/Adjustable	Width130mm/Adjustable	Width150mm/Adjustable	Width170mm/Adjustable	Width200mm/Adjustable
补水控制	Water replenishment control	自动补水/Automatic	自动补水/Automatic	自动补水/Automatic	自动补水/Automatic	自动补水/Automatic
低压电器	Low voltage electrical apparatus	法国施耐德/Schneider	法国施耐德/Schneider	法国施耐德/Schneider	法国施耐德/Schneider	法国施耐德/Schneider
变频器	Frequency converter	德国西门子/Siemens	德国西门子/Siemens	德国西门子/Siemens	德国西门子/Siemens	德国西门子/Siemens
离心泵品牌	Centrifugal pump brand	中国南泵/Nanfang China	中国南泵/Nanfang China	中国南泵/Nanfang China	中国南泵/Nanfang China	中国南泵/Nanfang China
离心泵规格	Centrifugal pump specifications	热水型/耐高温/单泵 Single Pump	热水型/耐高温/单泵 Single Pump	热水型/耐高温/单泵 Single Pump	热水型/耐高温/双泵 Double Pump	热水型/耐高温/双泵 Double Pump
离心泵型号	Centrifugal pump model	CDLF10-21FSWSR	CDLF10-21FSWSR	CDLF12-18FSWSR	CDLF8-20+CDH8-20	CDLF12-18+CDH12-18
输入电源	Input power supply	AC380V 50/60HZ	AC380V 50/60HZ	AC380V 50/60HZ	AC380V 50/60HZ	AC380V 50/60HZ
离心泵功率	Centrifugal pump power	7.5kw	7.5kw	11kw	15kw	22kw
电机功率	Motor power	0.4kw	0.75kw	0.75kw	1.1kw	1.5kw
压力范围	Pressure range	≈1.6-2.0MPa	≈1.6-2.0MPa	≈1.8-2.2MPa	≈2.5-3.5MPa	≈3.0-4.0MPa
环境温度	Ambient temperature	0 ～ 50°C	0 ～ 50°C	0 ～ 50°C	0 ～ 50°C	0 ～ 50°C
外形尺寸	Outer Dimension	160616501720mm	160616501720mm	160617201820mm	180818001820mm	219918001639mm

Use operation

1. Start and stop

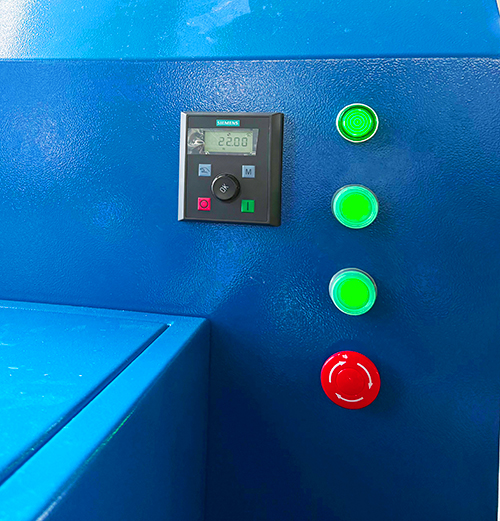

①Press the start / stop button of the water pump, the button light will be on, and the water pump will start normally. Press the start and stop button of the water pump again, the button light goes out and the water pump is turned off.
②Press the chain start / stop button, the button light will be on, and the transmission chain will start normally. Press the chain start / stop button again, the button light goes out and the chain conveyor chain is closed.
③After opening the chain transmission button, rotate the chain speed regulation button to adjust the chain transmission speed in real time.

④If necessary, the parameter setting of the frequency converter can be modified under the guidance of our technicians to adjust the maximum and minimum speed.

2. Pump pressure observation

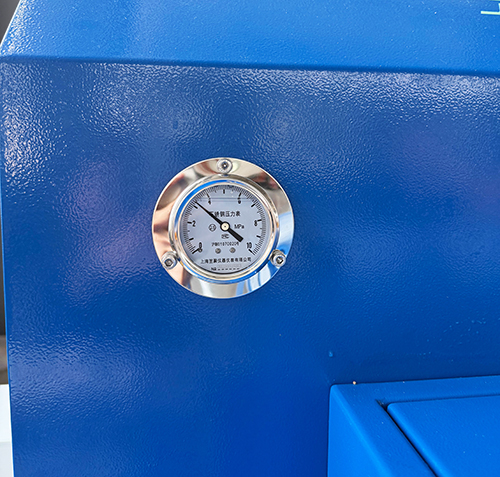

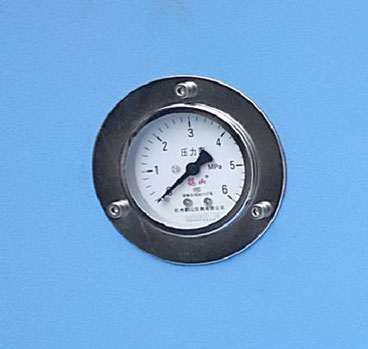

The pressure of our normal EXW small / large descaling machine is about 1.6-1.9mpa, with slight fluctuation, which belongs to normal pressure.

3. Attention to water pump

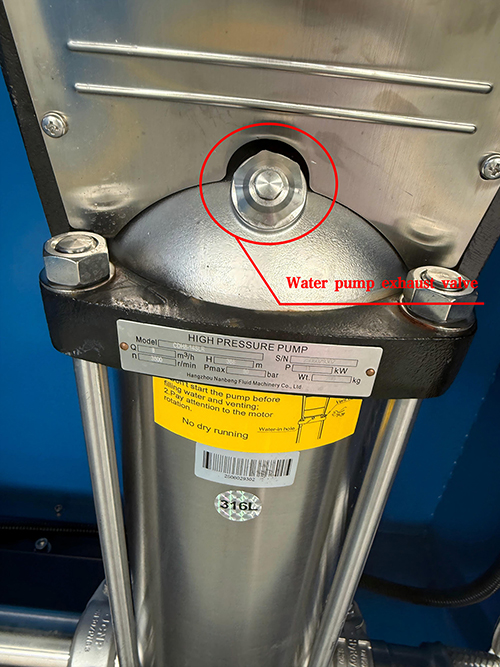

①Before startup, the pump must be filled with water and vented by the exhaust hole.
②If the pressure gauge shakes, it indicates that there is air in the pump. Open the air evacuation valve of the water pump in time to exhaust the air.
③In case of abnormal noise in the pump, stop the motor immediately and check whether the blade passage is blocked by foreign matters in the pump core. Insufficient water in the pump will also cause noise, which can be solved by emptying and adding water.

④The mechanical seal of the pump is a vulnerable part, which shall be replaced and maintained in time under long-term operation.

4. Workpiece application range adjustment

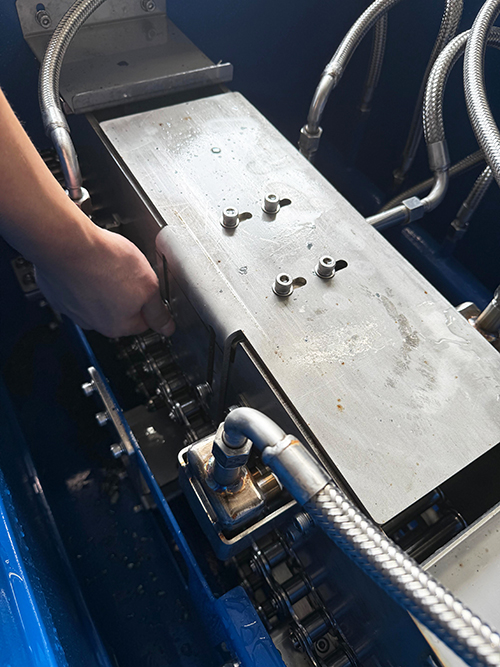

If the height of the product is too high, the nozzle inside the equipment shall be adjusted. According to the height of the customer's product, adjust the upper nozzle to be 30mm higher than the product (if the product height is 30mm, adjust the upper nozzle to be 30mm higher than the product and 60mm away from the chain). Adjustment method: loosen the four screws of L part as shown in Figure, and slide the U-groove up and down to adjust the position of the upper nozzle.
