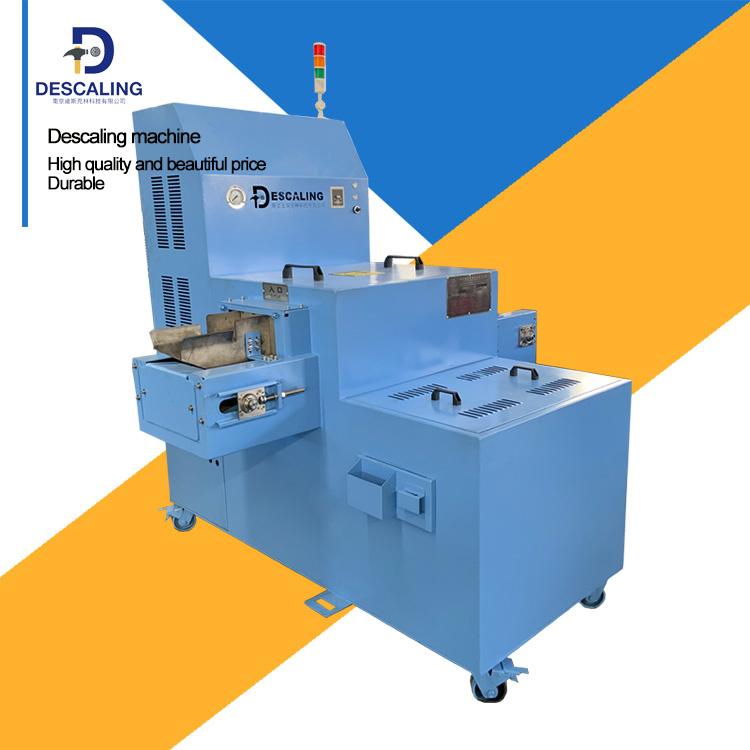

Carbon Steel Forgings Oxide Scale Standard Descaling Machine

Carbon Steel Forgings Oxide Scale Standard Descaling Machine is applicable to the oxide scale cleaning of round bar forgings. And it can clean the oxide skin of 20-120mm diameter round bars after heating in induction forging furnace,and also could clean the size under 220*120mm heated blanks.

  • Item NO.:

  • Payment:

  • Product Origin:

  • Color:

  • Goods stock:

  • Product weight:

    800 kg
  • Shipping Port:

  • Lead Time:

    1 MONTH
Share To :
Product Details

                               Carbon Steel Forgings Oxide Scale Standard Descaling Machine

Carbon steel or low and medium carbon alloy steel fasteners are easy to rust in humid environment also during the heating process with induction furnace. During hot upsetting and red stamping, black and dense oxide scale will be formed, which not only affects the appearance, but also brings inconvenience to surface treatment. All metal industries are plagued by oxide scale. In addition to the above effects, it also increases billet consumables, increases die wear speed, reduces die service life and product quality.

The scale of forging surface treatment is a problem in the metal industry. Usually, sand blasting, shot peening, heating pickling and normal temperature pickling can be used to remove rust and oxide scale on the surface of the forgings. I'd like to introduce a method to quickly remove oxide scale in forging process.

Using the principle of high-pressure water phosphorus removal, when the high-pressure water is hit to the billet surface through the nozzle, the following changes will occur: the fan-shaped surface formed by water flow is like a sharp blade, which cuts the dense iron sheet and forms cracks.

It can be seen that the thin fan has greater striking force. When high-pressure water passes through the crack and encounters high-temperature base metal, it vaporizes rapidly, forming a blasting effect, stripping the iron oxide scale from the base metal; After being impacted by water, the iron oxide scale shrinks when it is cold, resulting in transverse shear force, which peels the iron oxide scale from the base metal; The loose iron sheet is washed away by the scouring action of water jet with forward inclination.

The Hot Forging Descaling machine of Descaling Technology adopts the principle of oxide scale removal by high-pressure water. The equipment is made of stainless steel, high temperature resistant and corrosion-resistant. The equipment is exquisite. It is the best Forging Production Line descaling equipment on the market in China.

Hot Forging Bolts Descaling Machine

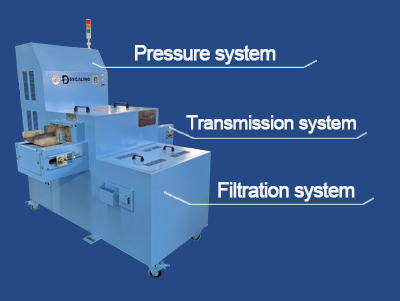

The descaling machine from Descaling technology, the main body of the equipment is composed of a pressure system, a transmission system and a filtration system. The three systems jointly use the principle of high-pressure water descaling to complete the cleaning process of the forging scale.

Standard Fasteners Forging Process

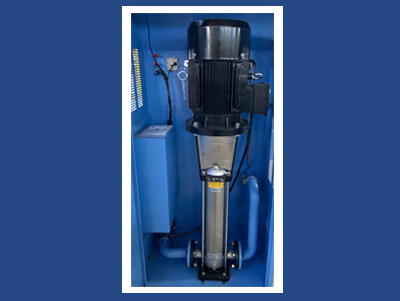

The high-pressure water descaling system is adopted, and the high-pressure water generated by the high-pressure water pump enters the descaling nozzle and is sprayed on the surface of the forging (or intermediate billet). The oxide scale has undergone the process of being cut, rapidly cooled and contracted, peeled from the base material, and washed away from the surface of the forging, thereby removing the oxide scale.

Forged Steel Anvil Descaler

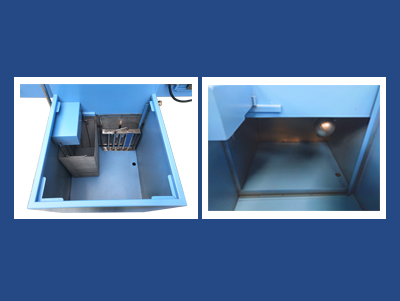

The descaling machine is equipped with two water tanks. The water tank has a built-in filter screen and a net basket to form the filter system of the equipment to prevent oxide scale from entering the water pump and affect the service life of the equipment. At the same time, it is equipped with a magnetic shovel to clean the oxide scale in the water tank.

Forging Temperature Of Steel Oxide Scale Cleaning

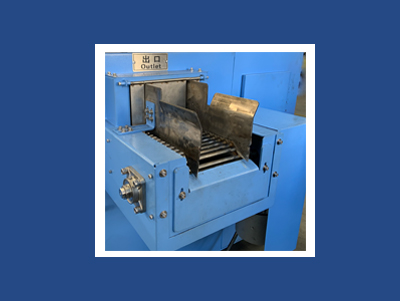

The frequency conversion motor and the chain constitute the transmission system, which is responsible for transporting the forgings for the cleaning process. The transmission speed of the chain can be adjusted to ensure that the temperature of the forgings after cleaning is small, which is conducive to subsequent forging.

1,The main body of the water tank is made of 304 stainless steel and painted with blue sky

2,The exit and entrance adopt integral welding with high parallelism

3,Front and back built-in baffle, less splash, easy maintenance

4,Integral cover to protect pump motor

5,Compared with the conventional descaling machine, the flow rate is large, and it is suitable for the refractory oxide scale products

6,The nozzle mounting seat is welded with stainless steel, which is easy to maintain

7,Comprehensive treatment of oxide skin, less lower the temperature

8,After removing the oxide scale, the metallographic structure of the product has no chang

Name Model Dimension(mm) Equipment power Pump brand Flow
Big High configuration descaling machine
Nanfang pump
Suitable for bar diameter(mm)
Width and height after blank making(mm)
Number of nozzles
Transmission motor specification
304 stainless steel
Speed control motor

Hot Forgings Cleaning And Descaling Machine

Hydraulic Press with Descaling Machine Process

Oxide Scale Desscaling Machine In China

1. What kind of forging pieces is descaling machine suitable for?

The descaling machine is applicable to the forging production line. It can clean the oxide scale generated after heating by induction furnace and effectively improve the surface quality of products.
2. How to choose the model of descaling machine? Can it be customized?
You can select the corresponding standard model through the diameter of the round bar and the size of the billet after making. For details, please check the parameter navigation bar of the webpage. If there is a need for customization, we can also provide customized services according to the customer's raw material size and process.
3. How to daily maintain descaling equipment?
We will recommend that customers regularly clean the oxide scale in the water tank. You only need to use a magnetic shovel to remove most of the oxide scale. But also regularly replace the water in the water tank to ensure a normal filtration cycle.
4. Does the principle of high-pressure water descaling change the metallographic structure?
This method has been tested by a third-party organization. The test report shows that there is no change in the metallographic structure before and after cleaning, which has no effect on the later process.
5. How effective is the descaling machine? Is there a reference video for descaling equipment?

Descaling Technology has served more than a thousand forging factories in China, and received a large number of market feedback results. Regarding the on-site use of the equipment, please click into official YouTube account as below for more information.
