Non-standard Custom 8.25KW Descaling Machine is applicable to the oxide scale cleaning of all kinds of forgings, and it can clean the scale of 50-100mm diameter round bars after heating in induction furnace, and also could clean the size under 75*250mm heated blanks. This equipment can be customized according to customer's forgings.
Item NO.:
DMS-80-20-CPayment:
50%DOWN PAYMENT,50% BEFORE SHIPPINGProduct Origin:
CHINAColor:
BLUEGoods stock:
50Product weight:
420 kgShipping Port:
SHANGHAILead Time:
2 MONTHS

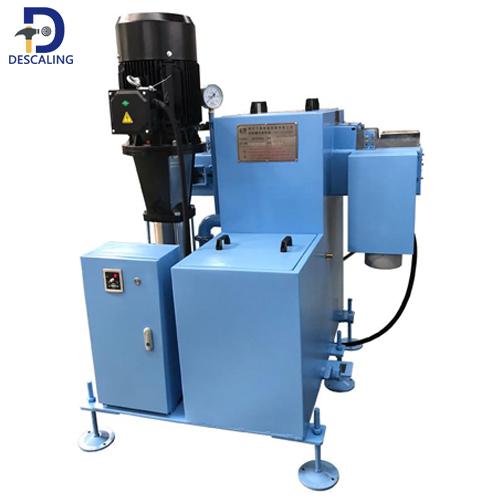

Non-standard Custom 8.25KW Descaling Machine
The forging oxide scale cleaning machine can effectively improve the surface quality of various forgings, especially suitable for the oxide scale generated after heating in the induction furnace of hot die forging line. After removing the oxide scale on the forging surface, the forging surface will be smooth, effectively saving machining time, raw materials and increasing the service life of the die.
The customized oxide scale descaling machine can adjust the size of the equipment according to the composition of the forging line on the customer's site, and the parameters of the forging oxide scale cleaning machine can be customized separately according to the forging process and forging product characteristics provided by the customer, so as to achieve the best cleaning effect and improve the surface quality of forgings to the greatest extent.
|

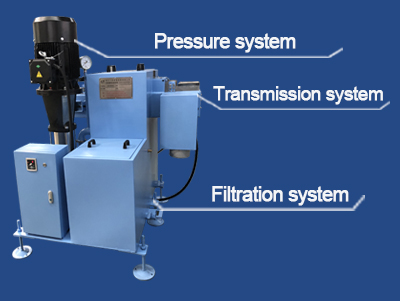

The descaling machine from Descaling technology, the main body of the equipment is composed of a pressure system, a transmission system and a filtration system. The three systems jointly use the principle of high-pressure water descaling to complete the cleaning process of the forging scale. |
The high-pressure water descaling system is adopted, and the high-pressure water generated by the high-pressure water pump enters the descaling nozzle and is sprayed on the surface of the forging (or intermediate billet). The oxide scale has undergone the process of being cut, rapidly cooled and contracted, peeled from the base material, and washed away from the surface of the forging, thereby removing the oxide scale. |
|

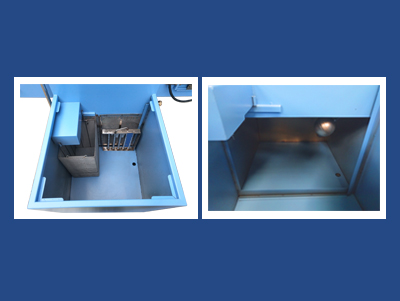

The descaling machine is equipped with two water tanks. The water tank has a built-in filter screen and a net basket to form the filter system of the equipment to prevent oxide scale from entering the water pump and affect the service life of the equipment. At the same time, it is equipped with a magnetic shovel to clean the oxide scale in the water tank. |
The frequency conversion motor and the chain constitute the transmission system, which is responsible for transporting the forgings for the cleaning process. The transmission speed of the chain can be adjusted to ensure that the temperature of the forgings after cleaning is small, which is conducive to subsequent forging.
|
|
1, The main body of the water tank is made of 304 stainless steel and painted with blue sky

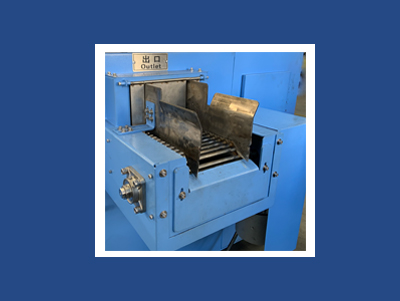

2, The exit and entrance adopt integral welding with high parallelism
3, Front and back built-in baffle, less splash, easy maintenance
4,The nozzle mounting seat is welded with stainless steel, which is easy to maintain
5,Comprehensive treatment of oxide skin, less lower the temperature
6,After removing the oxide scale, the metallographic structure of the product has no chang
Name | Model | Dimension(mm) | Equipment power | Pump brand | Flow |
Non-standard Custom Descaling Machine |
DMS-80-20-C |
1280*1200*1680 |
8.25KW |
Nanfang pump |
12m³/h |
Suitable for bar diameter(mm) |
Width and height after blank making(mm) |
Number of nozzles |
Material |
Transmission motor |
Chain specification |
55-100 |
75*250 |
26 |
304 stainless steel |
Speed control motor |
16A |
