Item NO.:
DMS-80-20-PPayment:
50% Downpayment,50% Before shippingProduct Origin:
ChinaColor:
BlueGoods stock:
100Product weight:
500 kgShipping Port:
Shanghai PortLead Time:
1 Months

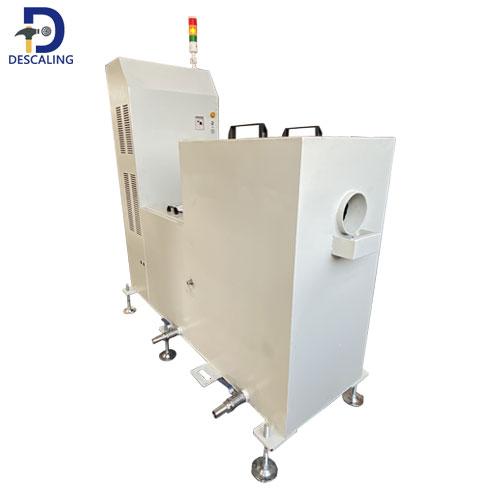

Hand Tools Hot Forging Billet Descaling Machine
The Hand Tools Hot Forging Billet Descaling Machine can clean all kinds of hand tool forgings, such as pliers,open-ended wrenches,spanners, torque wrenches etc.And it could achieve local forging process. The side opening design is suitable for the operator to manually clamp the round bar or forging blank heated by the induction furnace and extend the forging blank to remove the oxide scale. It is suitable for the forging line without forging automation. This equipment can be customized to adjust the high-pressure water nozzle and inlet.
The Hand Tools Hot Forging Billet Descaling Machine has been exported to many countries and customized for different customers. Customers need to provide the forging name, approximate process, forging size or forging blank size heated by induction furnace. Our company can carry out 3D drawing to design the equipment and put it into production after confirmation with customers. Generally, the delivery cycle can be completed within 30 working days and transported to the port.
The forging scale cleaning machine independently developed by our company is competitive in the market because we have an independent and mature team to customize the forging line of customers. Due to the complex process of forging production, if we can't customize the on-site layout of customers, we can't really serve customers.
At present, forging plants in many countries have begun to use oxide scale cleaning equipment, with good market feedback. The surface quality of forgings has been significantly improved, which can effectively improve the quality of forgings.
|
The descaling machine from Descaling technology, the main body of the equipment is composed of a pressure system, a transmission system and a filtration system. The three systems jointly use the principle of high-pressure water descaling to complete the cleaning process of the forging scale. |
The high-pressure water descaling system is adopted, and the high-pressure water generated by the high-pressure water pump enters the descaling nozzle and is sprayed on the surface of the forging (or intermediate billet). The oxide scale has undergone the process of being cut, rapidly cooled and contracted, peeled from the base material, and washed away from the surface of the forging, thereby removing the oxide scale. |
|
|
The descaling machine is equipped with two water tanks. The water tank has a built-in filter screen and a net basket to form the filter system of the equipment to prevent oxide scale from entering the water pump and affect the service life of the equipment. At the same time, it is equipped with a magnetic shovel to clean the oxide scale in the water tank.
|
1, The main body of the water tank is made of 304 stainless steel and painted with blue sky
2, The exit and entrance adopt integral welding with high parallelism
3, Front and back built-in baffle, less splash, easy maintenance
4,The nozzle mounting seat is welded with stainless steel, which is easy to maintain
5,Comprehensive treatment of oxide skin, less lower the temperature
6,After removing the oxide scale, the metallographic structure of the product has no chang
Name | Model | Dimension(mm) | Equipment power | Pump brand | Flow |
Non-standard Custom Descaling Machine |
DMS-120-20-P |
1620*600*1670 |
7.5KW |
Nanfang pump |
8m³/h |
Suitable for bar diameter(mm) |
Width and height after blank making(mm) |
Number of nozzles |
Material |
Transmission motor |
Chain specification |
30-60 | 100 | 18 |
304 stainless steel |
Speed control motor |
/ |
Descaling Technology has served more than a thousand forging factories in China, and received a large number of market feedback results. Regarding the on-site use of the equipment, please click into official YouTube account as below for more information.
